网通射频芯片

QCN-5024-0-105DRQFN-TR-00-0

  • The QCN-5024-0-105DRQFN-TR-00-0 is is housed in a DRQFN (Dual Row Quad Flat No-Lead) package, known for its compact size and low-profile design.The DRQFN package includes an exposed thermal pad on the bottom, which improves heat dissipation and helps manage thermal performance effectively, essential for high-speed and high-power applications.

产品描述

The QCN-5024-0-105DRQFN-TR-00-0 is a sophisticated component designed by Qualcomm to provide high-performance wireless communication solutions. Its DRQFN100 package offers a compact and efficient form factor, making it ideal for applications where space is at a premium but performance requirements remain high.

This component integrates multiple functions into a single package, reducing the need for additional external components and simplifying the overall design. The high level of integration also contributes to cost savings and design efficiency.

With support for a range of wireless standards and protocols, the QCN-5024-0-105DRQFN-TR-00-0 is versatile enough to be used in various fields, including consumer electronics, industrial automation, and automotive systems. Its design ensures robust performance and high data transmission capabilities, meeting the demands of modern communication technologies.

规格参数

  • Product Type: Wireless Communication Module/Chip


  • Package Type: DRQFN (Dual Row Quad Flat No-lead), a type of compact, surface-mount package


  • Frequency Bands: Typically supports multiple frequency bands, including common ones like 2.4 GHz and 5 GHz, depending on the specific application and configuration.


  • Connectivity Standards:

    • Wi-Fi: Supports standards such as Wi-Fi 6 (802.11ax), ensuring high-speed connectivity and improved network efficiency.

    • Bluetooth: Supports Bluetooth 5.2 or similar versions, providing enhanced data transfer rates and extended range.


  • Data Transfer Rate:

    • Wi-Fi: Capable of high-speed data rates up to several Gbps.

    • Bluetooth: Supports data rates up to 2 Mbps (Bluetooth 5.2).


  • Interface Options:

    • Serial Interfaces: UART, SPI, I2C for integration with various host systems.

    • Other Interfaces: May include GPIOs, ADCs, or other specialized interfaces depending on the specific model.

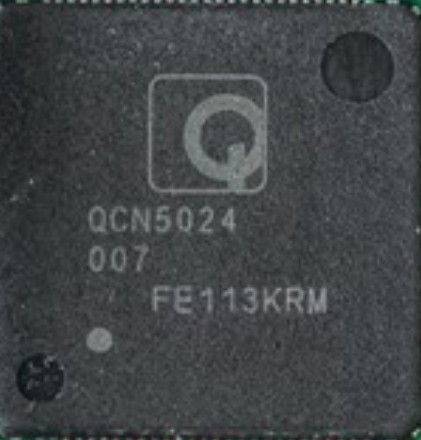

外观图
